Diencephalon

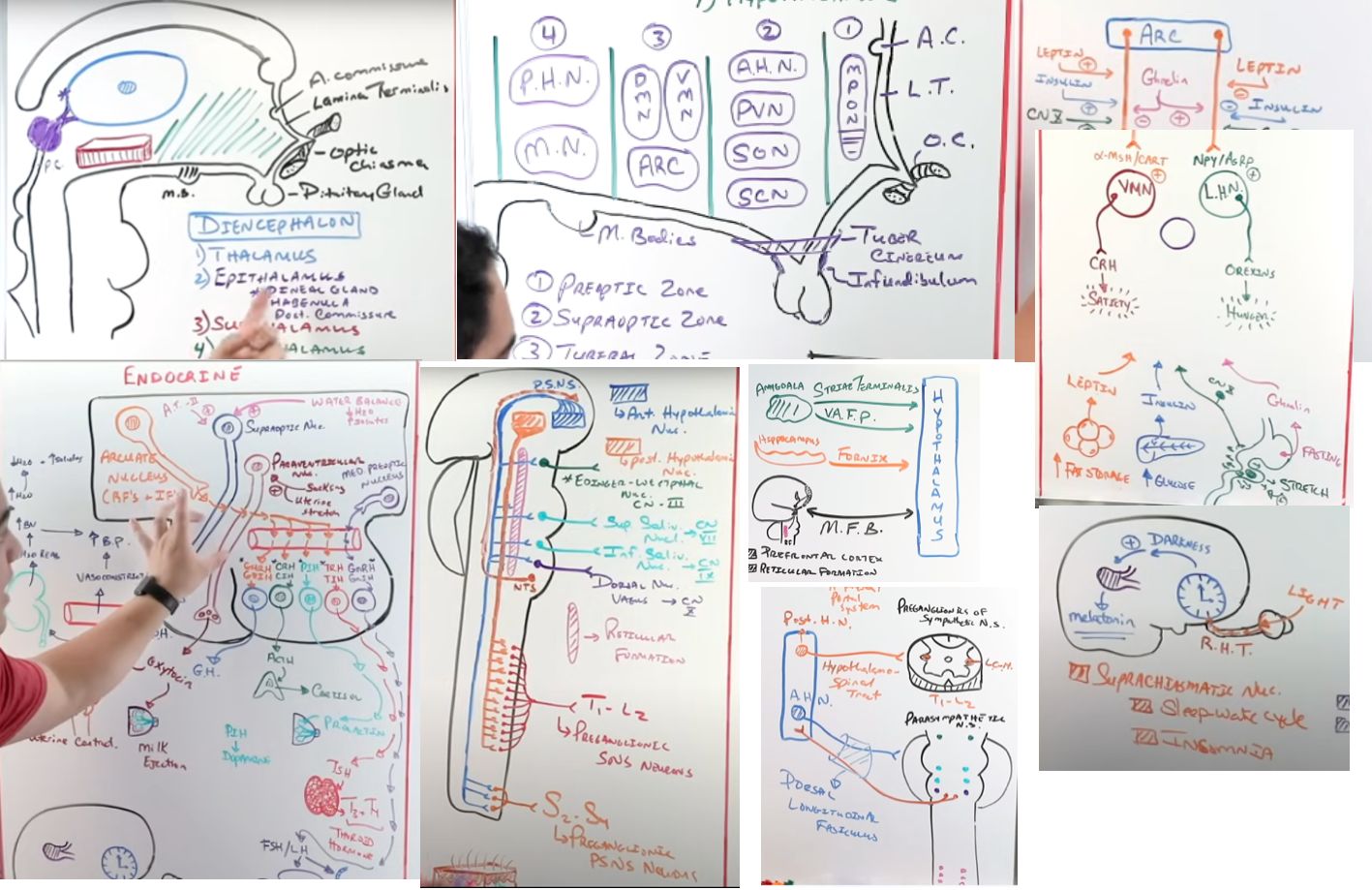

The hypothalamus is 1 of 4 parts of the diencephalon[…], bounded anteriorly by the anterior commissure[…], lamina terminalis, and optic chiasm[…], and inferiorly by the tuber cinereum[…] which funnels into the infundibulum and pituitary.

Major afferents: amygdala via the stria terminalis[…]; hippocampus via the fornix[…]; reticular formation and PFC via the medial forebrain bundle[…].

The lateral hypothalamic[…] nucleus spans Zones 1-4.

Zone 1 is the preoptic[…] zone (medial preoptic nucleus).

Zone 2 is the supraoptic[…] zone (SCN, SON, PVN, anterior nucleus).

Zone 3 contains the arcuate[…], ventromedial, and dorsomedial nuclei.

Zone 4 is the mammillary[…] zone (mammillary nuclei + posterior nucleus).

The medial preoptic nucleus (Zone 1) releases GnRH[…], acting on anterior pituitary gonadotrophs[…] to trigger LH and FSH[…] release — driving estrogen/progesterone in females and spermatogenesis/testosterone in males.

Zone 2 supraoptic (SON)[…] nucleus senses hyperosmolality and angiotensin II, releasing ADH[…], which causes vasoconstriction and renal water reabsorption.

Zone 2 paraventricular (PVN)[…] nucleus responds to suckling and uterine stretch, releasing oxytocin[…] — causing uterine contractions and milk ejection.

The suprachiasmatic nucleus (SCN)[…] is activated by light via the retino-hypothalamic tract, stimulating the pineal[…] gland to suppress melatonin — driving the circadian wake state.

The anterior hypothalamic nucleus (AHN)[…] drives the parasympathetic[…] system via the dorsal longitudinal fasciculus to cranial parasympathetic nuclei: Edinger-Westphal[…] (CN III pupil constriction), superior salivatory[…] (CN VII), inferior salivatory[…] (CN IX), and dorsal motor nucleus of vagus[…] (CN X).

The arcuate (ARC)[…] nucleus releases factors into portal blood to the anterior pituitary: GHRH[…] → GH, CRH[…] → ACTH → cortisol, TRH[…] → TSH → T3/T4, and dopamine[…] → inhibits prolactin.

The ventromedial nucleus (VMN)[…] signals satiety (increases with leptin, insulin, and vagus input).

Damage to VMN → hyperphagia and obesity[…].

Arcuate NPY activates the lateral hypothalamic nucleus (LHN)[…] to cause hunger via orexin signaling.

The mammillary[…] bodies support memory by relaying through the Papez circuit; lesions cause Wernicke-Korsakoff[…] syndrome with working-memory loss and confabulation.

The posterior hypothalamic nucleus (PHN)[…] drives the sympathetic[…] system via the hypothalamo-spinal tract to thoracolumbar preganglionic neurons (T1-L2).

Mnemonic: AHN drives PS[…] (parasympathetic); PHN drives S[…] (sympathetic).

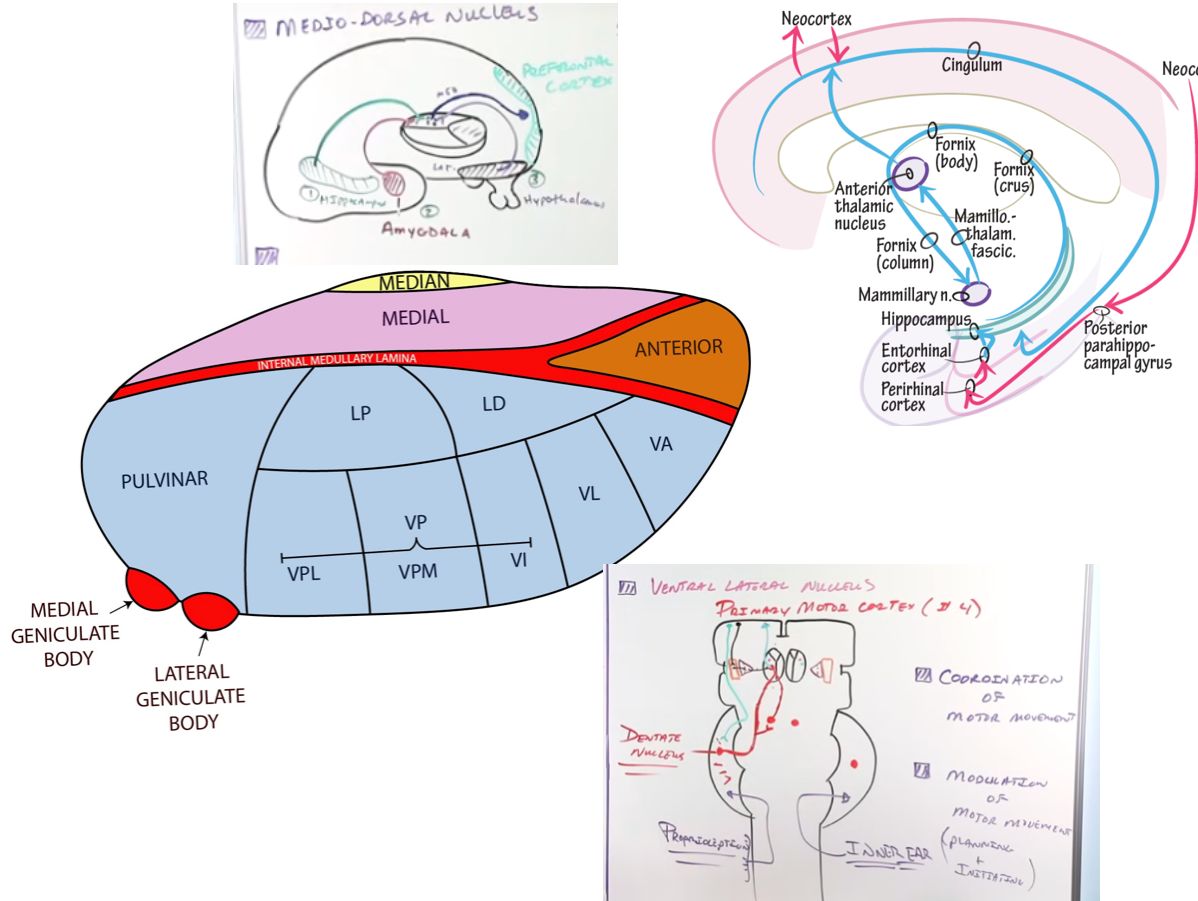

The internal medullary lamina[…] splits the thalamus into three groups of nuclei (anterior, medial, lateral) and contains intralaminar[…] nuclei.

A key intralaminar nucleus is the centromedian[…] nucleus, which receives some STT fibers via the spinal lemniscus[…] and projects to nonspecific cortical areas like the cingulate[…] gyrus — encoding the emotional[…] dimension of pain.

The anterior thalamic nucleus[…] supports memory in the Papez circuit; damage is linked to Alzheimer[…] and Parkinson disease, with classic injury producing Wernicke-Korsakoff[…] syndrome.

The medial / mediodorsal (MD)[…] nucleus receives input from the olfactory cortex, amygdala, and hypothalamus[…], and projects mainly to the prefrontal[…] cortex — injury produces Wernicke-Korsakoff features.

The ventral anterior (VA)[…] nucleus participates in basal ganglia pathways.

The ventral lateral (VL)[…] nucleus relays both basal ganglia and cerebellar input to cortex, projecting chiefly to the primary motor[…] cortex.

Together, VA and VL are the motor relay nuclei of the basal ganglia/cerebellar loops.

The VPM[…] nucleus receives trigeminal and gustatory inputs from the face.

The VPL[…] nucleus receives DCML and spinothalamic inputs from the body.

Both project to the primary somatosensory[…] cortex (postcentral gyrus).

The medial geniculate nucleus (MGN)[…] carries auditory information (mnemonic: M for music) to primary auditory cortex.

The lateral geniculate nucleus (LGN)[…] carries visual information (mnemonic: L for light) to primary visual cortex.

The pulvinar[…] nucleus integrates input from MGN, LGN, and the colliculi, projecting to visual association[…] areas for higher-order processing.

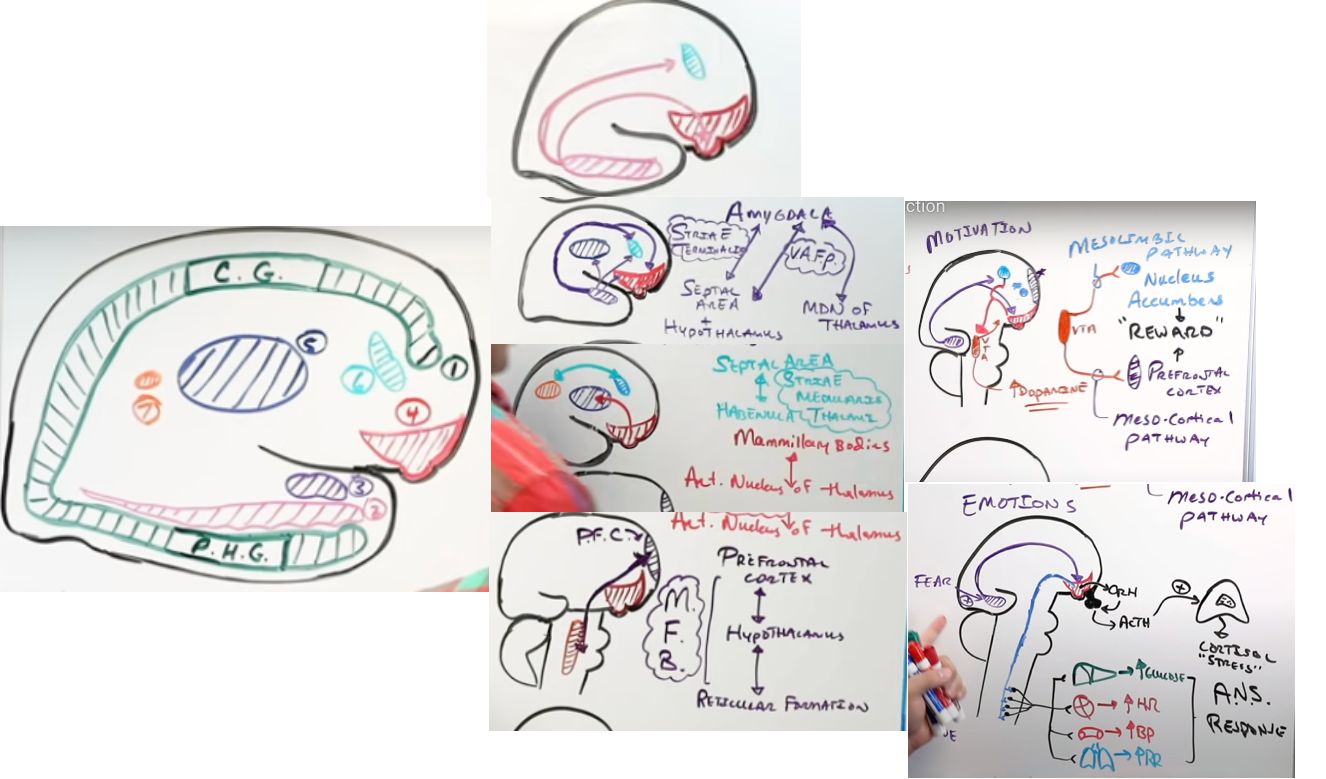

The limbic lobe includes the cingulate[…] gyrus (memory, emotion, autonomic control) and the parahippocampal[…] gyrus (olfaction, memory).

The hippocampal formation contains the dentate gyrus[…] (inputs), subiculum[…] (outputs), and hippocampus proper (CA1-CA4)[…].

The hypothalamus links body state to emotion and action; the anterior thalamic nucleus (ATN)[…] and mediodorsal (DMN)[…] nuclei are the major thalamic players.

The septal area[…] shapes reward and limbic tone; the amygdala[…] processes emotional valence.

Hippocampus → septal area and hypothalamus via the fornix[…].

Amygdala → septal area and hypothalamus via the stria terminalis[…].

Habenula → septal area via the stria medullaris[…].

Mammillary bodies → anterior thalamus via the mammillothalamic[…] tract.

PFC → lateral hypothalamus → reticular formation via the medial forebrain bundle[…].

Hypothalamus → VTA via the mamillo-tegmental[…] tract; return via mammillary peduncles.

Memory and learning travel through the Papez[…] circuit.

Circuit: posterior parahippocampal[…] gyrus and perirhinal cortex → entorhinal cortex → hippocampus[…] → fornix (crus → body → column) → mammillary[…] bodies → mammillothalamic[…] tract → anterior thalamic nucleus → cingulate[…] gyrus → back to parahippocampal gyrus.

The parahippocampal gyrus also ties odors to memory; the amygdala[…] links odors to emotion.

The amygdala[…] gathers input from auditory cortex, primary auditory area, and PFC, sending output via stria terminalis and fornix to the septal area and hypothalamus.

Feeding: hypothalamic VMN[…] = satiety; LHN[…] = hunger (orexin).

Sexual: PVN[…] releases oxytocin; medial preoptic nucleus drives GnRH-mediated arousal.

Threat signals travel amygdala → posterior hypothalamic nucleus (PHN)[…] (Zone 4).

PHN sends hypothalamo-spinal[…] fibers to thoracolumbar preganglionic neurons (S system), producing tachycardia, hypertension, tachypnea, and pupil dilation[…].

Stress hormone axis: hypothalamic arcuate[…] nucleus triggers CRH[…] → pituitary ACTH[…] → adrenal cortisol[…].

Septal/hypothalamic drive reaches the VTA[…] in the midbrain.

VTA (rich in dopamine[…]) projects via the mesolimbic[…] pathway to the nucleus accumbens[…] — encoding reward and addiction.

VTA also projects via the mesocortical[…] pathway to the PFC[…] — supporting motivation and executive control.

Kluver-Bucy[…] syndrome follows bilateral temporal damage injuring the amygdala[…]: features include placidity, hyperphagia, hypersexuality, and amnesia[…].

Wernicke-Korsakoff[…] syndrome injures the mammillary bodies[…] (from thiamine deficiency), causing confabulation, anterograde amnesia, and oculomotor abnormalities[…].
